70HQSAH

Easy Dismantle Heating Clean Range Hood ("Soft Touch" Control Panel)

Daul DC Motors with Powerful Sirocco Fan Design
Dual Installation Options - Under-cabinet Installation & Wall-mounted Installation
Touch Control Panel
Gesture Control
Auto Cleaning Technology: High Efficiency Thermal Oil-removal Technology

Color: Stainless Steel

Price: HK$2,980

Feature
Specifications
FAQ

User Manual
Downloads:

Feature

Dual DC Motors with Powerful Sirocco Fan Design, High Efficiency & Energy Saving
Maximum Airflow Up to 1,000 m3/h (Data Based on Airflow in Boost Mode)
Dual Installation Options - Under-cabinet Installation & Wall-mounted Installation

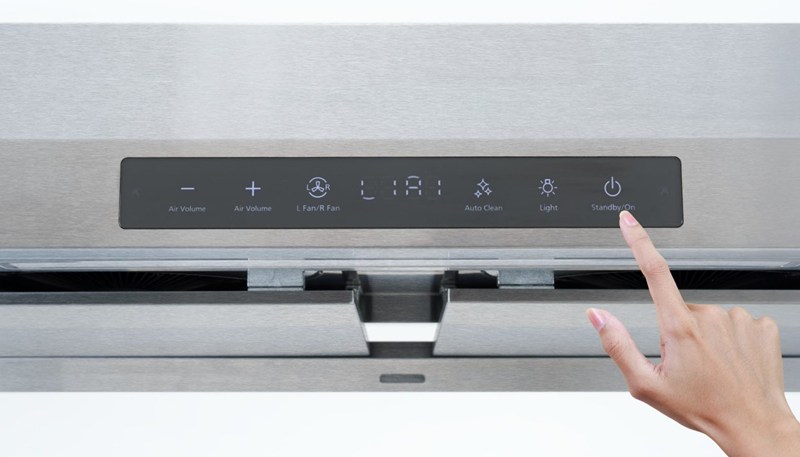

Touch Control Panel and Gesture Control
Auto Cleaning Technology - High Efficiency Thermal Oil-removal Technology That Melts Away Grease Automatically
Includes 6-inch to 5-inch Adapter for Flexible Installation Configurations
LED Lighting Module (4 W)
Detachable Oil Deflector – Effectively Traps Grease and Prevents Oil Buildup Inside the Hood
Dimension (mm): 698 (W) x 520 (D) x 135 (H)
2 Years Warranty

Specifications

		70HQSAH

		70HQSAH
Air Velocity	Super	1,000 CMH
	High	800 CMH
	Low	530 CMH
Frequency		50 Hertz (Hz)
Power Consumption	Super	250 Wattage (W)
	High	120 Wattage (W)
	Low	50 Wattage (W)
Voltage		220 Voltage (V)
Net Weight		15 Kilogram (kg)
Unit dimensions (Approx.) (W x D x H)		698 x 520 x 135 mm

FAQ

🙋 Automatic Cleaning Button

The auto clean function operates independently of other settings and can be activated when the product is operating or in standby.
The product performs one automatic cleaning cycle for every 30 hours of operation. After 30 hours of operation, the "Auto Clean" button will blink, touch and hold this button for above 3 seconds to start the auto clean function, and to enter the 10-minute automatic cleaning mode, the digital display will show the cleaning countdown. After the cleaning process is completed, the "Auto Clean" button will return to a half-lit state, and the accumulated cleaning time will be reset.
if the product has not been operated for more than 30 hours, touch and hold "Auto Clean" button for above 3 seconds to start the auto clean function. The aautomatic cleaning cycle will be reset.
While the automatic cleaning mode is running, touch the "Standby/On" button to stop the automatic cleaning and enter the standby mode. Touch the "Standby/On" button again or swipe from left to right to resume the operation mode before the automatic cleaning.
Only after the product has been operated for at least 30 hours will be "Auto Clean" button blink to remind you that an auto clean is needed.
While the product is in operation, touch and hold the "+" and "-" button for about 3 seconds to turn off the blinking of "Auto Clean" button.
