S-45MD1E5

FSV VRF Systems (Indoor Unit) (1.7 HP (Wired/Wireless Remote Control))

  • FSV VRF Systems Air Conditioner

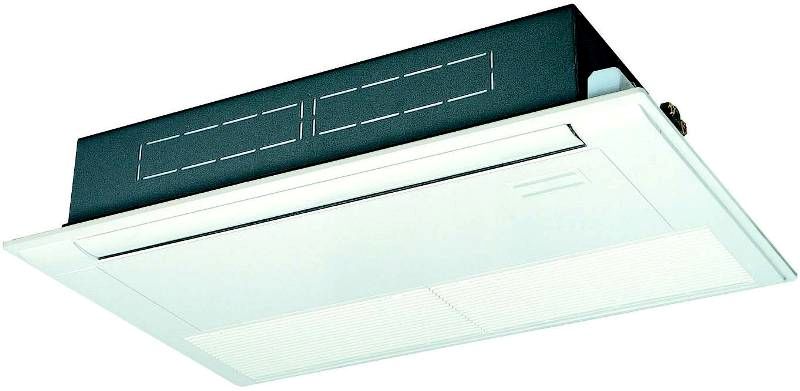

  • 1-Way Semi Concealed Slim Cassette Type Inverter Heat Pump Indoor Unit



Feature

  • R410A Refrigerant
  • VRF FSV Systems Air Conditioner
  • 1-Way Cassette Type
  • Cooling 15,000 BTU/h (4.5kW)
  • Heat Pump 17,000 BTU/h (5.0kW)
  • Size(HxWxD)
    Indoor Unit: 200x1000x710mm
    Panel: 20x1230x800mm
  • Supported with Panasonic Comfort Cloud App(Installation of WiFi Adapter CZ-CAPWFC1 is required)
  • http://shew.com.hk/english/brand/panasonic/ventilation-and-air-conditioning/air-conditioner/fsv-vrf-systems/air-conditioner-accessories/cz-capwfc1.aspx

Specifications

S-45MD1E5
S-45MD1E5
Cooling Capacity 15,000 BTU/h (4.5kW)
Heating Capacity 17,000 BTU/h (5.0kW)
Electrical Data 220 Voltage (V)
Power input Cooling 0.052 kW
Heat Pump 0.042 kW
Net Weight Indoor Unit 26.5kg
Size (H x W x D) Indoor Unit 200x1000x710mm
Panel 20x1230x800mm
Combination of Outdoor Unit U-8ME2H7
U-10ME2H7
U-12ME2H7
U-14ME2H7
U-16ME2H7
U-18ME2H7
U-20ME2H7
U-8LE1H7
U-10LE1H7
U-8MF3R7
U-10MF3R7
U-12MF3R7
U-14MF3R7
U-16MF3R7
U-4LE2H4
U-5LE2H4
U-6LE2H4
U-4LE2H7
U-5LE2H7
U-6LE2H7
* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.
* Product specifications are subject to change without prior notice.
