FV-23NL3H

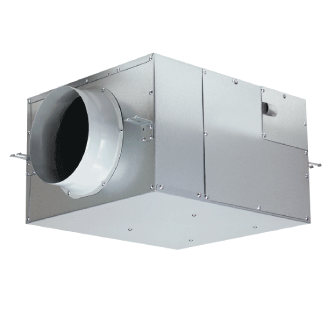

Cabinet Ventilating Fan [Air Volume (Hi):1200CMH]

  • Impeller Diameter: 220mm
  • Thermo cut-off motor
  • Twin flow fan design to generate large air volume and maintain high static pressure
  • Compact size
Color: Silver
Price: HK$4,190



Feature

  • Impeller Diameter: 220mm
  • Long life condenser motor with thermal cut-off
  • Twin flow fan design to generate large air volume and maintain high static pressure
  • Hi / Lo speed selectable
  • Compact size
  • Single-phase
  • Size(mm): 298(H) x 609(W) x 468(D)

Specifications

FV-23NL3H
FV-23NL3H
Voltage 220 Voltage (V)
Power Consumption High 230 Wattage (W)
Low 170 Wattage (W)
Frequency 50 hertz (Hz)
Fan Speed High 1245 R.P.M.
Low 985 R.P.M.
Air Volume High 1200 Cubic meters per hour (m3/h)
Low 900 Cubic meters per hour (m3/h)
Noise Level High 40 decibel (dB(A))
Low 34 decibel (dB(A))
Weight 18 Kilogram (kg)
* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.
* Product specifications are subject to change without prior notice.
