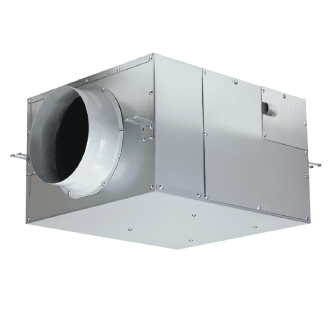

FV-20NS3H

Cabinet Ventilating Fan [Air Volume (Hi):920CMH]

  • Impeller Diameter: 178mm
  • Thermo cut-off motor
  • Twin flow fan design to generate large air volume and maintain high static pressure
  • Compact size
Color: Silver
Price: HK$3,450



Feature

  • Impeller Diameter: 178mm
  • Long life condenser motor with thermal cut-off
  • Twin flow fan design to generate large air volume and maintain high static pressure
  • Hi / Lo speed selectable
  • Compact size
  • Single-phase
  • Size(mm): 272(H) x 581(W) x 416(D)

Specifications

FV-20NS3H
FV-20NS3H
Voltage 220 Voltage (V)
Power Consumption High 120 Wattage (W)
Low 113 Wattage (W)
Frequency 50 hertz (Hz)
Fan Speed High 1195 R.P.M.
Low 1000 R.P.M.
Air Volume High 920 Cubic meters per hour (m3/h)
Low 720 Cubic meters per hour (m3/h)
Noise Level High 32 decibel (dB(A))
Low 29 decibel (dB(A))
Weight 14 Kilogram (kg)
* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.
* Product specifications are subject to change without prior notice.
