VBHN325SA17

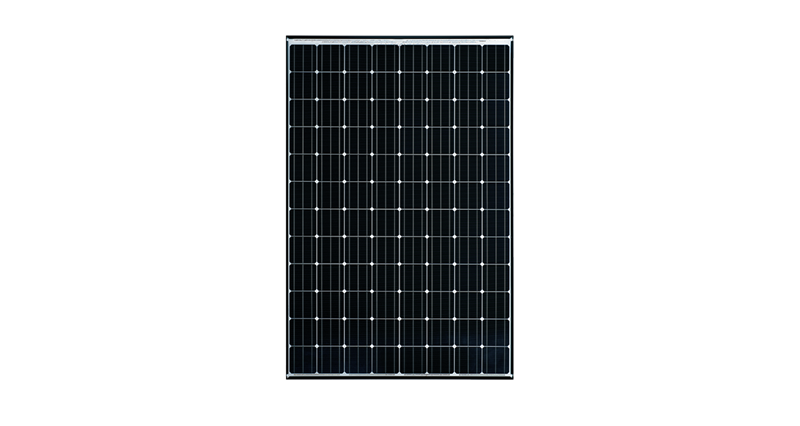

Panasonic HIT Solar Panel

  • Max. Power (Pmax): 325W
  • Solar Panel Efficiency: 19.4%
  • Temperature Coefficient(Pmax): -0.258%/℃
  • Length : 1590mm
  • Width : 1053mm
  • Height : 40mm
  • Weight : 19kg
Price: HK$2,980



Feature

  • Cell Number in Series                : 96
  • Maximum Power Voltage (Vpm)  :57.6V
  • Maximum Power Current (Ipm)  :5.65A
  • Open Circuit Voltage (Voc)        :69.6V
  • Short Circuit Current (Isc)        :6.03A
  • Maximum System Voltage (Voc):1000V
  • Maximum over-current protection rating:15A
  • Factory Installed Bypass Diodes: 4
  • Wind Load (Pa): 5400

https://panasonic.net/ecosolutions/solar


***Please press here to download the Warranty Registration Form.***

Specifications

VBHN325SA17
VBHN325SA17
* The product is subject to the actual product. Photos and product shots are for reference only. The actual color and size may vary slightly from those shown.
* Product specifications are subject to change without prior notice.
