23BWDBH

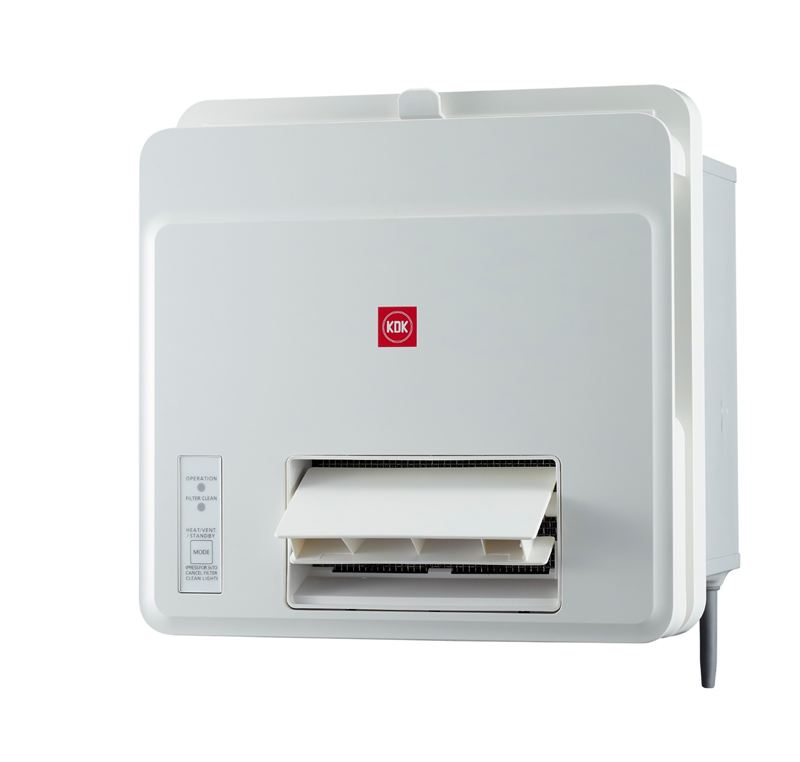

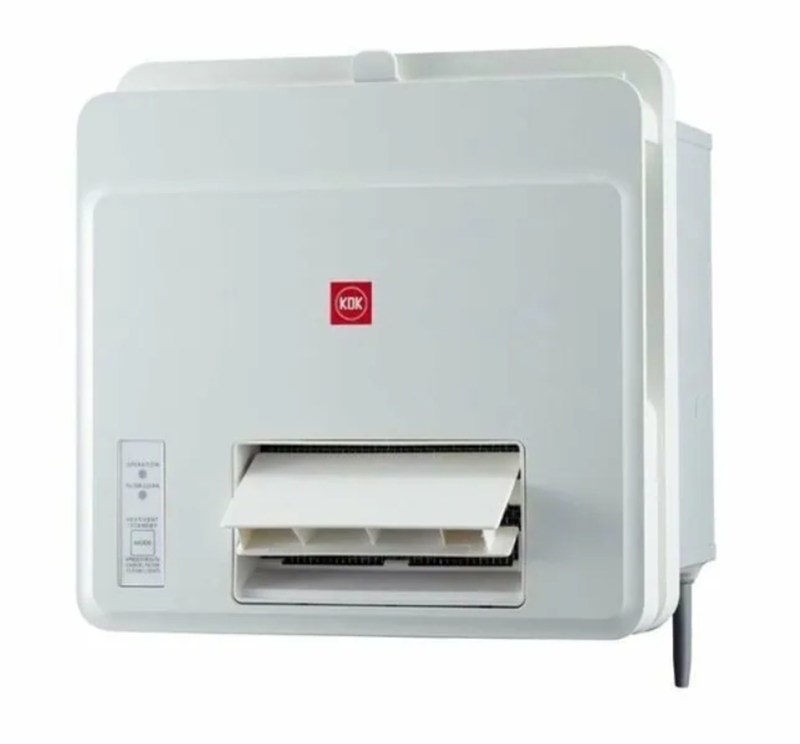

Window Mount – Thermo Ventilator (Slim Type)

New1
  • Window Mount Installation
  • Duct Installation is not required
  • Easy installation with small installation size
  • Ventilation / Heating / Dry Hot (Clothes Drying) / Dry Cool (Circulation) Feature
  • New RF IPX4 Remote Control with magnetic bottom box cover of the remote control
  • Air Direction: Vertical Auto/Fixed Swing
Color: White
Price: HK$3,380



Feature

  • Window Mount Installation
  • Duct Installation is not required
  • Smaller installation size with dimension of 238 x 242mm (W x H)
  • Ventilation / Heating / Dry Hot (Clothes Drying) / Dry Cool (Circulation) Feature
  • New RF Remote Control with magnetic bottom box cover of the remote control for easy operation and installation
  • Pre-set Timer Control Feature
  • Auto / Manual Swing Operation
  • Alleru-buster Filter
  • Max. Time
    - Heat: 180 mins
    - Vent. CONT.
    - Dry Hot: 360 mins
    - Dry Cool: CONT.
  • Size(mm) : 280 (W) x 280 (H) x 286 (D)

Specifications

23BWDBH
23BWDBH
Net Weight 4.8 Kg
Wattage Ventilation 34 W
Max. Wattage 1,400 W
Air Volume Ventilation 220 CMH
Noise Level Ventilation 48 dB
Heating 48 dB
Heater PTC
Control Type Wireless Remote
Heating Yes
Dry Hot‧Cool
Ventilation Yes
Timer 15/30/60/180/360 (Minute)
Filter Alleru-buster Filter
No. of Motor / Blade 1 / 1
No. of Exhaust Outlet 1
Installation Hole Size 238 x 242 mm
9.37 x 9.53 inch
(W x H)

FAQ

🙋 Installation hole size and louver size

Model Type Installation hole size Height x Width (mm) Louver size Height x Width (mm)
23BWAH Window Mount 242 x 238 280 x 280
23BWDBH Window Mount 242 x 238 280 x 280
30BWBH Window Mount 300 x 275 350 x 320
30BGCH Ceiling Mount 300 x 300 360 x 360
40BECH Ceiling Mount 280 x 400 350 x 472
Specifications are subject to change without prior notice.
